TP N°1: PLC Traffic Light SFC Programming

Discover the Basics of SFC Traffic Light Programming

Are you looking to take your first steps into sequential programming? Discover this first Practical Work (TP N°1: PLC Traffic Light Project), a free introductory document designed to help you understand the fundamentals of SFC (Sequential Function Chart) traffic light programming. This comprehensive tutorial provides a clear, step-by-step approach to automating a common intersection, making it an essential resource for students and beginners.

By diving into this PLC Traffic Light Project, you are not just learning how to blink lights; you are discovering the core principles of safety interlocks, timed transitions, and state management that power complex manufacturing plants globally.

• What’s Great About This Project
• Project Limitations
• Exact PDF Content (8 Pages)
• Frequently Asked Questions
• Download the Files

What’s Great About This PLC Traffic Light Project

This training resource is highly structured and packed with practical information tailored for those new to the field. Here is what makes this TP N°1 stand out:

• Clear Visual Approach: The document presents a detailed Flowchart (logigram) outlining the complete operating cycle of the intersection traffic lights. This visual aid makes complex logic easy to follow.
• Structured for Beginners: It clearly defines the initial state, the complete sequential cycle, and establishes a precise mapping table of inputs (sensors, pushbuttons) and outputs (three-color traffic lights).
• Ready-to-use Solution: It provides the complete sequence code (in text format for the AutomationView automation_machine API), ready to be simulated and tested immediately.

Project Limitations (What is Not Covered)

While this PLC Traffic Light Project is an excellent starting point, it is important to understand its scope to ensure it meets your current learning objectives:

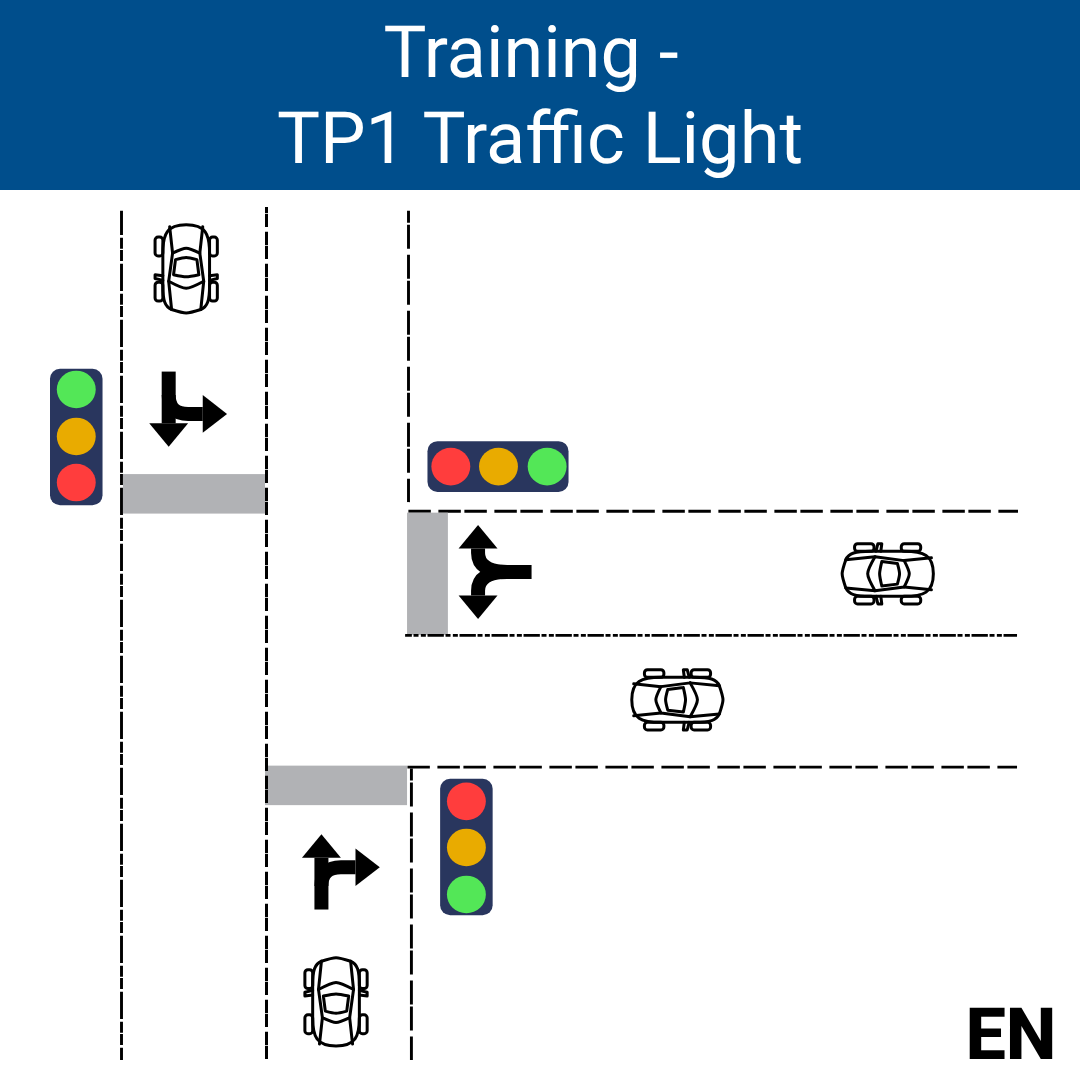

• Basic Use Case: This is a very simple T-intersection (one priority main road, one adjacent road with a sensor). It does not include pedestrian crossing management or complex traffic flow optimization algorithms.
• Limited Fault Management: The exercise focuses purely on the basic functional cycle and does not delve into the details of advanced hardware fault management or complex emergency recovery states.

Exact PDF Content (8 Pages)

When you download this resource, you will receive a concise, highly focused 8-page PDF document containing:

1. Description of the intersection and the initial state.
2. Cycle logic: switching to green, timers (T_yellow, T_safety), and passage times.
3. Visual Flowchart of the step sequence.
4. Variable identification table (I/O mapping).
5. Project creation procedure under AutomationView.
6. Complete and functional SFC sequence code.

Frequently Asked Questions

1. Is this project suitable for absolute beginners?
Absolutely. The PLC Traffic Light Project is designed specifically as an introductory Practical Project (TP N°1), making it the perfect starting point.

Download Your Project Files

Get started immediately by adding this free project to your cart. Once checkout is complete, you will gain access to the complete project archive, which includes the 8-page PDF documentation and the sequence files directly in your downloads section.
